HYUPSHIN FLANGES |
1. Standard: EN1092-1
2. Type: Loose Flange, Lapped Flange (Flat Face)
3. Pressure: PN16
4. Size: DN15 - DN1000, larger Sizes available on request
5.
Raw Material: P245GH, P250GH, P265GH, C22.8, S235JR
6. Process: Forged
7. Basic requirements for Material and Flange |
|
|

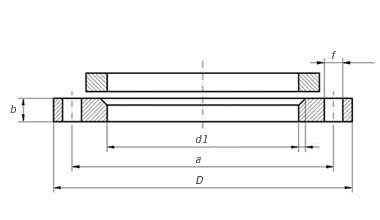

| EN 1092-1 TYPE 02 PN16 LOOSE FLANGE |
| Rated Diameter |
Flange |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
k |
D |
b |
e |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
25 |
65 |
95 |
14 |
3 |
14 |
M12 |
4 |
0,655 |
| 20 |
31 |
75 |
105 |
16 |
4 |
14 |
M12 |
4 |
0,913 |
| 25 |
38 |
85 |
115 |
16 |
4 |
14 |
M12 |
4 |
1,081 |
| 32 |
47 |
100 |
140 |
18 |
5 |
18 |
M16 |
4 |
1,781 |
| 40 |
53 |
110 |
150 |
18 |
5 |
18 |
M16 |
4 |
2,035 |
| 50 |
65 |
125 |
165 |
20 |
5 |
18 |
M16 |
4 |
2,668 |
| 65 |
81 |
145 |
185 |
20 |
6 |
18 |
M16 |
4 |
3,241 |
| 80 |
94 |
160 |
200 |
20 |
6 |
18 |
M16 |
8 |
3,512 |
| 100 |
120 |
180 |
220 |
22 |
6 |
18 |
M16 |
8 |
4,247 |
| 125 |
145 |
210 |
250 |
22 |
6 |
18 |
M16 |
8 |
5,258 |
| 150 |
174 |
240 |
285 |
24 |
6 |
22 |
M20 |
8 |
6,945 |
| 200 |
226 |
295 |
340 |
26 |
6 |
22 |
M20 |
12 |
9,383 |
| 250 |
281 |
355 |
405 |
29 |
8 |
26 |
M24 |
12 |
13,717 |
| 300 |
333 |
410 |
460 |
32 |
8 |
26 |
M24 |
12 |
18,213 |
| 350 |
365 |
470 |
520 |
35 |
8 |
26 |
M24 |
16 |
27,184 |
| 400 |
416 |
525 |
580 |
38 |
8 |
30 |
M27 |
16 |
34,789 |
| 450 |
467 |
585 |
640 |
42 |
8 |
30 |
M27 |
20 |
44,793 |
| 500 |
519 |
650 |
715 |
46 |
8 |
33 |
M30 |
20 |
62,227 |
| 600 |
622 |
770 |
840 |
55 |
8 |
36 |
M33 |
20 |
98,983 |
| 700 |
721 |
840 |
910 |
63 |
8 |
36 |
M33 |
24 |
107,32 |
| 800 |
824 |
950 |
1025 |
74 |
8 |
39 |
M36 |
24 |
152,44 |
| 900 |
926 |
1050 |
1125 |
82 |
8 |
39 |
M36 |
28 |
184,25 |
| 1000 |
1030 |
1170 |
1255 |
90 |
8 |
42 |
M39 |
28 |
257,09 |
|
Tutte le nostre flange rispettano le normative europee EN - italiane UNI - tedesche DIN - americane ANSI. Realizziamo flange piane - libere - per cartelle - a collarino - filettare - cieche I materiali impiegati sono: Acciaio al carbonio = ASTM A105 - C22,8 - RST37,2, Acciaio inossidabile = ASTM A182 F304 - F316L |
| Toutes nos brides respectent les normes européennes EN - italiennes UNI - allemandes DIN - américaines ANSI. Nous réalisons des brides plates - libres - en collet -filetées - pleines.Les matériaux employés sont: Acier au carbone : ASTM A 105 - C22,8 - RST37,2, Acier inoxydable : ASTM A 182 F304 - F316L |
|
Alle unseren Flansche entsprechen den europäischen (EN), italienischen (UNI), deutschen (DIN) und US-amerikanischen (ANSI) Normen. Wir stellen glatte Flansche - lose Flansche -, Vorschweißflansche -Gewindeflansche und Blindflansche her. Wir verwenden folgende Materialien: Kohlenstahl = ASTM A105 - C22,8 - RST37,2, rostfreien Stahl = ASTM A182 F304 - F316L |
|
| |
|
|
|
|
|
|
|
|
|
|
