HYUPSHIN FLANGES |
1. Standard: EN1092-1
2. Type: Threaded Flange, Screwed Flange (Raised Face)
3. Pressure: PN16
4. Size: DN15 - DN150, larger Sizes available on request
5.
Raw Material: P245GH, P250GH, P265GH, C22.8, S235JR
6. Process: Forged
7. Basic requirements for Material and Flange |
|
|

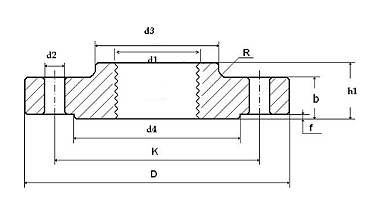

| EN 1092-1 TYPE 13 PN16 THREADED FLANGE |
| Rated Diameter |
Flange |
Neck |
Raised face |
Screws |
Weight
(7,85 Kg/dm3) |
| d1 |
Thread |
k |
D |
b |
h1 |
d3 |
d4 |
f |
d2 |
Thread |
Bolt holes |
KG |
| 15 |
21,3 |
R 1/2" |
65 |
95 |
16 |
22 |
35,0 |
45,0 |
2,0 |
14 |
M12 |
4 |
0,722 |
| 20 |
26,9 |
R 3/4" |
75 |
105 |
18 |
26 |
45,0 |
58,0 |
2,0 |
14 |
M12 |
4 |
1,040 |
| 25 |
33,7 |
R 1" |
85 |
115 |
18 |
28 |
52,0 |
68,0 |
2,0 |
14 |
M12 |
4 |
1,250 |
| 32 |
42,4 |
R 1-1/4" |
100 |
140 |
18 |
30 |
60,0 |
78,0 |
2,0 |
18 |
M16 |
4 |
1,810 |
| 40 |
48,3 |
R 1-1/2" |
110 |
150 |
18 |
32 |
70,0 |
88,0 |
3,0 |
18 |
M16 |
4 |
2,060 |
| 50 |
60,3 |
R 2" |
125 |
165 |
18 |
28 |
84,0 |
102,0 |
3,0 |
18 |
M16 |
4 |
2,390 |
| 65 |
76,1 |
R 2-1/2" |
145 |
185 |
18 |
32 |
104,0 |
122,0 |
3,0 |
18 |
M16 |
4 |
2,970 |
| 80 |
88,9 |
R 3" |
160 |
200 |
20 |
34 |
118,0 |
138,0 |
3,0 |
18 |
M16 |
8 |
3,780 |
| 100 |
114,3 |
R 4" |
180 |
220 |
20 |
40 |
140,0 |
158,0 |
3,0 |
18 |
M16 |
8 |
4,380 |
| 125 |
139,7 |
R 5" |
210 |
250 |
22 |
44 |
168,0 |
188,0 |
3,0 |
18 |
M16 |
8 |
6,070 |
| 150 |
168,3 |
R 6" |
240 |
285 |
22 |
44 |
195,0 |
212,0 |
3,0 |
22 |
M20 |
8 |
7,240 |
|
